SALICE CONCEALED AIR HINGE SOFT-CLOSE

In Stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In stock

SKU

SALICE CONCEALED AIR HINGE SOFT-CLOSE

Salice's Air hinge is fully adjustable in three directions and alos incorporates an integraged soft close mechanism for declerated closing. The Air is inserted into the top and bottom of the cabinet & door for a practically invisible application.

105 degree
Hinge thickness of only 10mm
16.5mm deep metal cup
Min door thickness: 3/7in (18mm)
Max door weight per pair: 44lbs
Max door height: 83in
Max door width: 24in
Max door thickness: 1-1/2 (38mm)
Wood doors- edge bore drilling 3-6mm bore distance
Aluminum doors - bore 4mm distance
3-way cam ajustable
- Side +2/-2mm
- Depth +2/-1.5mm
- Height +1.5/-1.5mm

Installation Guide

Salice_AIR_installation.pdf

Grouped product items
Item Number	Description	Color	Unit of Measure	Base Price	Volume Price	Qty

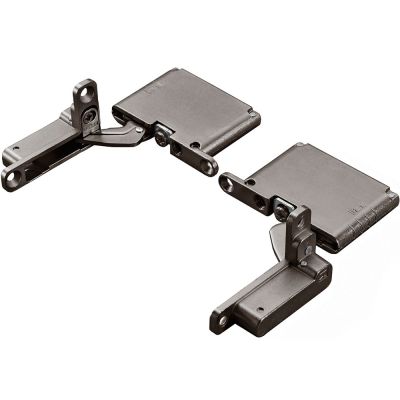

Item Number SACEL6XE6XXV Add to Favorite	Description Titanium	Color Titanium	UOM PR	Price $86.40	Tier Price $83.60 Volume Pricing Buy 4 for $83.60 each and save 3% Buy 12 for $83.00 each and save 4%	Quanity

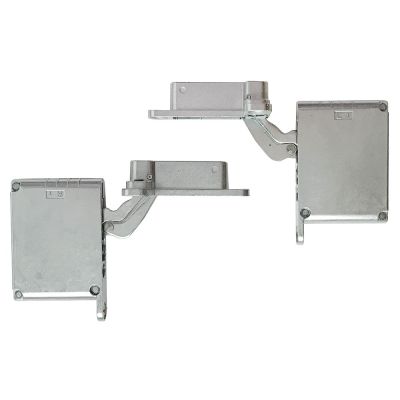

Item Number SACEL6XE9XXV Add to Favorite	Description Nickel	Color Nickel	UOM PR	Price $82.04	Tier Price $79.37 Volume Pricing Buy 4 for $79.37 each and save 3% Buy 12 for $78.78 each and save 4%	Quanity
