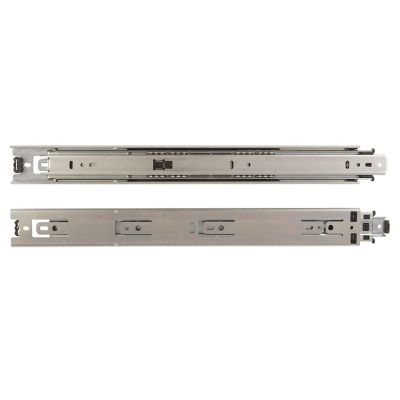

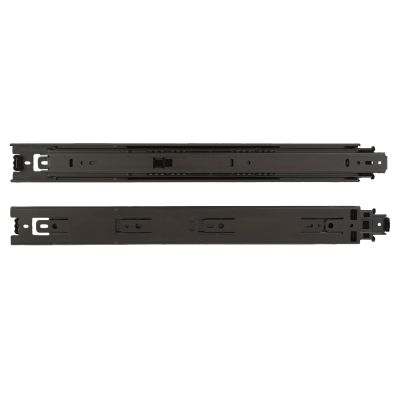

KV 8405 Full Extension with Overtravel Ball Bearing Slide

KV8400 precision ball-bearing drawer slides with overtravel are non-handed with an easy disconnect. Available in anochrome and black. Our best selling slide.

One set comes with a left and right slide to do one drawer.

Screws Included
Price
Item Number Description Color UOM Base Price Base Price
(Qty 10)
Volume Pricing Qty
KV8405 B10 ANO 10" Anochrome SET $13.66 $12.79
Click here
KV8405 B10 EB 10" Black SET $14.26 $13.36
Click here
KV8405 B12 ANO 12" Anochrome SET $13.91 $13.04
Click here
KV8405 B12 EB 12" Black SET $14.50 $13.61
Click here
KV8405 B14 ANO 14" Anochrome SET $13.63 $12.75
Click here
KV8405 B14 EB 14" Black SET $14.91 $14.00
Click here
KV8405 B16 ANO 16" Anochrome SET $14.04 $13.17
Click here
KV8405 B16 EB 16" Black SET $15.36 $14.44
Click here
KV8405 B18 ANO 18" Anochrome SET $14.51 $13.63
Click here
KV8405 B18 EB 18" Black SET $15.88 $14.94
Click here
KV8405 B20 ANO 20" Anochrome SET $14.91 $14.02
Click here
KV8405 B20 EB 20" Black SET $16.34 $15.39
Click here
KV8405 B22 ANO 22" Anochrome SET $15.42 $14.50
Click here
KV8405 B22 EB 22" Black SET $16.87 $15.91
Click here
KV8405 B24 ANO 24" Anochrome SET $15.88 $14.95
Click here
KV8405 B24 EB 24" Black SET $17.43 $16.45
Click here
KV8405 B26 ANO 26" Anochrome SET $17.16 $16.20
Click here
KV8405 B28 ANO 28" Anochrome SET $17.81 $16.83
Click here
Features
  • Side height: 1-13/16"
  • Side clearance: 1/2" + 1/32" - 0
  • Full extension plus 1" overtravel
  • 100# Load Rating
  • Steel ball bearing (Three bearings per inch of race. Exceptionally smooth and quiet. A very high quality slide!
  • Full 32mm hole pattern
  • Non-handed
  • Easy disconnect
  • Optional rear mounting bracket product number KV8403 BBL ZC or KV8401
  • Optional face frame braket KV8404 BBL ZC or KV8404 EB
Specifications
Type Ball Bearing Slide
Manufacturer KV
Application 32mm hole pattern
Style Non-handed
Load Rating 100 lbs
Closing Action Stay close
Height 1-13/16"
Extension Full Extension with 1" overtravel
Installation kv8405.pdf
Related Products KV8400,KV8455,KV8419
Accessories KV8400 Mounting Brackets,KTNZ03,KTNZ03 B
Warranty Limited Lifetime Warranty
Screws Included Yes
Mounting Type Side
Side Clearance 1/2"
Installation
Shipping : All orders are shipped in 24 hours
