Blum 170° Clip Top Hinges

The Blum 170° CLIP top hinges snap on and lift off without any tools and feature 3-dimensional adjustment for precise door alignment. Hinges work for full overlay, half overlay and inset applications.  Hinge cup mounting styles include screw-on, press-in, expando dowel and inserta. To view images of hinge arms and cup mounting styles see gallery pictures below the main picture.  See 3mm hinge plate spacer below.  For more information click on the installation tab below.  Required mounting plates are sold separately, click on the related products tab below to view.

Price
Item Number Description Color UOM Base Price Base Price
(Qty 25)
Volume Pricing Qty
B071T6540B Straight arm, self closing, inserta Nickel EA $7.37 $6.60
Click here
B071T6550 Straight arm, self closing, screw on Nickel EA $5.90 $5.16
Click here
B071T6580 Straight arm, self closing, press in Nickel EA $5.91 $5.17
Click here
B071T6640B Half cranked, self closing, inserta Nickel EA $8.99 $8.16
Click here
B071T6650 Half cranked, self closing, screw on Nickel EA $7.53 $6.76
Click here
B071T6680 Half cranked, self closing, press in Nickel EA $7.61 $6.84
Click here
B070T6540B Straight arm, free swing, inserta Nickel EA $7.48 $6.71
Click here
B070T6550 Straight arm, free swing, screw on Nickel EA $6.03 $5.29
Click here
B070T6650 Half cranked, free swing, screw on Nickel EA $7.65 $6.87
Click here

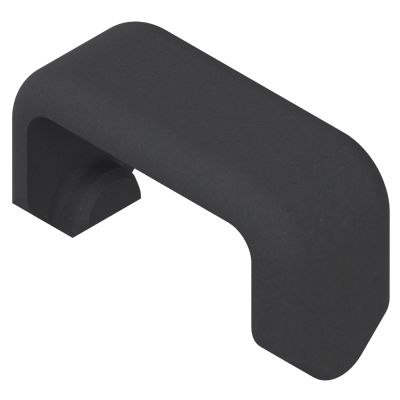

B070.6103 Restriction clip, 130 degree for special applications Black EA $0.78 $0.41
Click here
Features

Faceframe applications (Sample- other hinge and plate options available)

  • 1/4" overlay - Hinge B071T6650 and Mounting Plate B175H6000
  • 1/2" overlay - Hinge B071T6550 and Mounting Plate B175H6030
  • Full overlay - Hinge B071T6550 and Mounting Plate B175H6000
  • Inset doors - Hinge B071T6650 and Mounting Plate B175H5030.21



Frameless applications (Sample- other hinge and plate options available)

  • 1/4" overlay - Hinge B071T6650 and Mounting Plate B175H710
  • 1/2" overlay - Hinge B071T6550 and Mounting Plate B175H713
  • Full overlay - Hinge B071T6550 and Mounting Plate B175H710
  • Inset doors - Hinge B071T6650 and Mounting Plate B175H719
Specifications
Manufacturer Blum
Color Nickel
Installation b071_and_b070.pdf,b071_b070install.pdf,170_hinge_applications.pdf
Required Accessories Text Blum Mounting Plate Required
Warranty Limited Lifetime Warranty
Opening Degree 170
Hinge Cup Size 35mm
Cabinet Style Face Frame / Frameless
Mounting Plate Required Yes
Hinge Bore Diameter 35mm
